Cable Rack Application Guide
Browse accessories for Newton cable Rack
An example Illustration of a typical multi-tier cable rack assembly
Channel Type cross rung, solid side bars
Newton offers Channel Type cross rung cable rack with solid side bars in 2″ and 1.5 ″heights

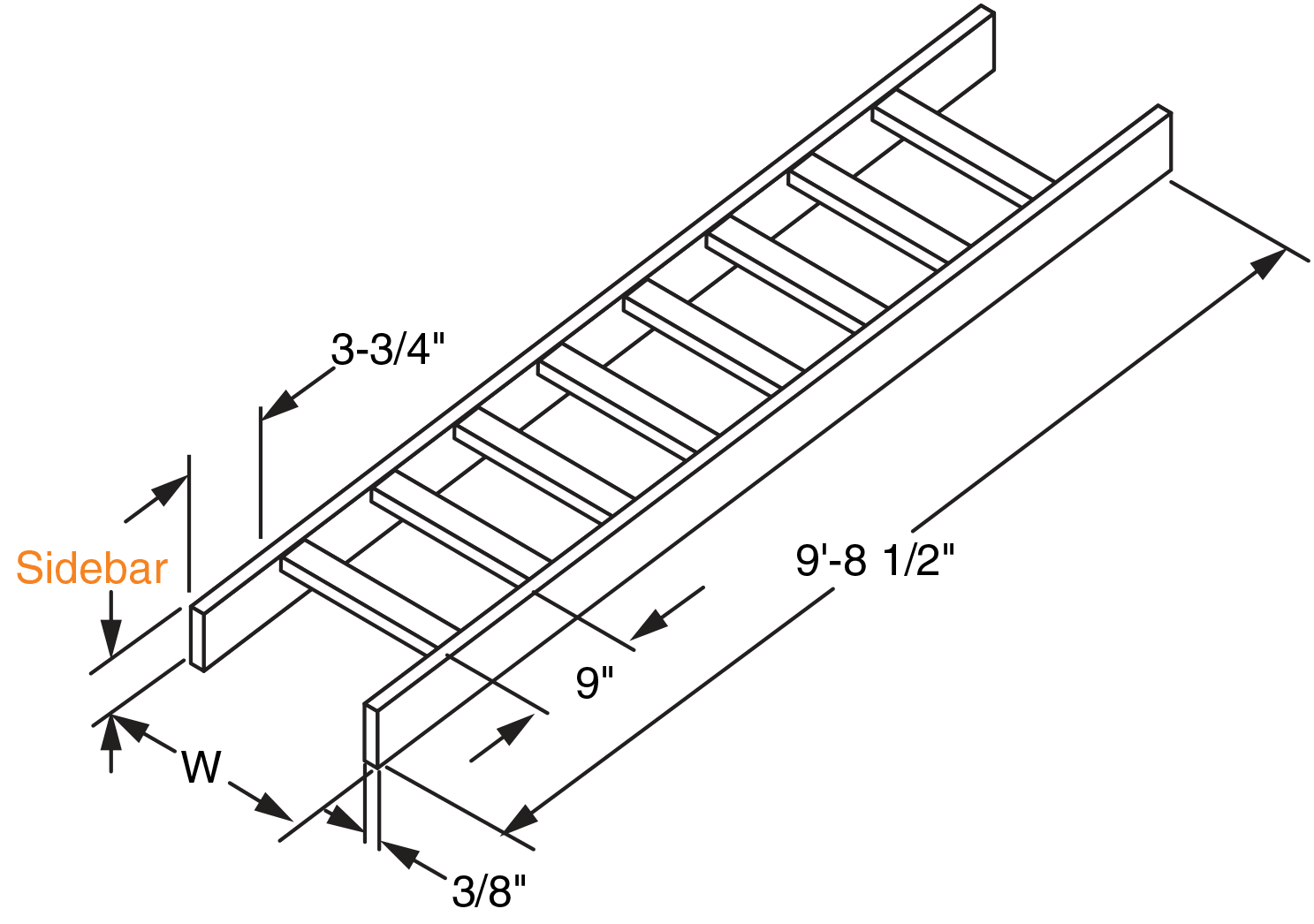

Channel Type Cross Rung Cable Rack -- 002003xxxx Series
Channel type cross rungs
Solid Side Bar profile
| Newton Part # | Width | Side Bar |
|---|---|---|
| 0020030130 | 5" | 1.5" |
| 0020030230 | 6" | 1.5" |
| 0020030330 | 9" | 1.5" |
| 0020030430 | 10" | 1.5" |
| 0020030530 | 11" | 1.5" |
| 0020030630 | 12" | 1.5" |
| 0020030730 | 15" | 1.5" |
| 0020030830 | 18" | 1.5" |
| 0020030930 | 20" | 1.5" |
| 0020031030 | 21" | 1.5" |
| 0020031130 | 24" | 1.5" |
| 0020031230 | 25" | 1.5" |
| 0020031330 | 27" | 1.5" |
| 0020031430 | 30" | 1.5" |
| 0020031530 | 36" | 1.5" |
| Newton Part # | Width | Side Bar |
|---|---|---|
| 0020033130 | 5" | 2" |
| 0020033185 | 5" | 2" |
| 0020033230 | 6" | 2" |
| 0020033330 | 9" | 2" |
| 0020033430 | 10" | 2" |
| 0020033485 | 10" | 2" |
| 0020033530 | 11" | 2" |
| 0020033630 | 12" | 2" |
| 0020033685 | 12" | 2" |
| 0020033730 | 15" | 2" |
| 0020033785 | 15" | 2" |
| 0020033830 | 18" | 2" |
| 0020033930 | 20" | 2" |
| 0020033985 | 20" | 2" |
| 0020034030 | 21" | 2" |
| 0020034130 | 24" | 2" |
| 0020034230 | 25" | 2" |
| 0020034330 | 27" | 2" |
| 0020034430 | 30" | 2" |
| 0020034530 | 36" | 2" |
