Trough Type cable rack
Newton offers Trough Type Cross Rung Cable Rack in 2 different Side Bar heights; 1.5 inch and 2 inch options.

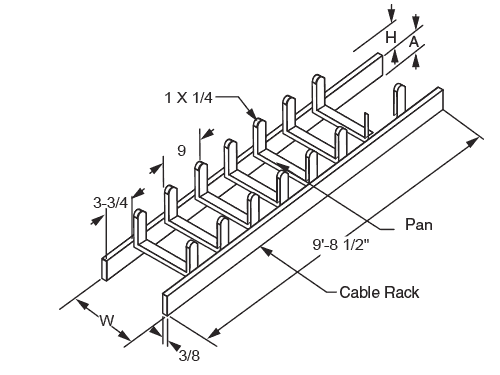

Trough Type Cross Rung Cable Rack shown with optional pan -- 002004xxxx Series
Trough Type Cable Rack profile -- 002004xxxx Series
| Newton Part # | Width | Sidebar | Height |
|---|---|---|---|
| 0020040130 | 5" | 1.5" | 5" |
| 0020040230 | 6" | 1.5" | 5" |
| 0020040330 | 10" | 1.5" | 8" |
| 0020040430 | 12" | 1.5" | 8" |
| 0020040530 | 15" | 1.5" | 8" |
| 0020040630 | 18" | 1.5" | 8" |
| 0020040730 | 22" | 1.5" | 8" |
| 0020040830 | 24" | 1.5" | 8" |
| 0020040930 | 30" | 1.5" | 8" |
| 0020041030 | 36" | 1.5" | 8" |
| Newton Part # | Width | Sidebar | Height |
|---|---|---|---|
| 0020042130 | 5" | 2" | 5" |
| 0020042230 | 6" | 2" | 5" |
| 0020042330 | 10" | 2" | 8" |
| 0020042430 | 12" | 2" | 8" |
| 0020042530 | 15" | 2" | 8" |
| 0020042630 | 18" | 2" | 8" |
| 0020042730 | 22" | 2" | 8" |
| 0020042830 | 24" | 2" | 8" |
| 0020042930 | 30" | 2" | 8" |
| 0020043030 | 36" | 2" | 8" |
