30 x 36 x 84: Super Frame

NEBS / GR-63 - core Approved to 1150 lbs. Zone 4

Photos

30 x 36 Super Frame

Drawings

S843036 assembled

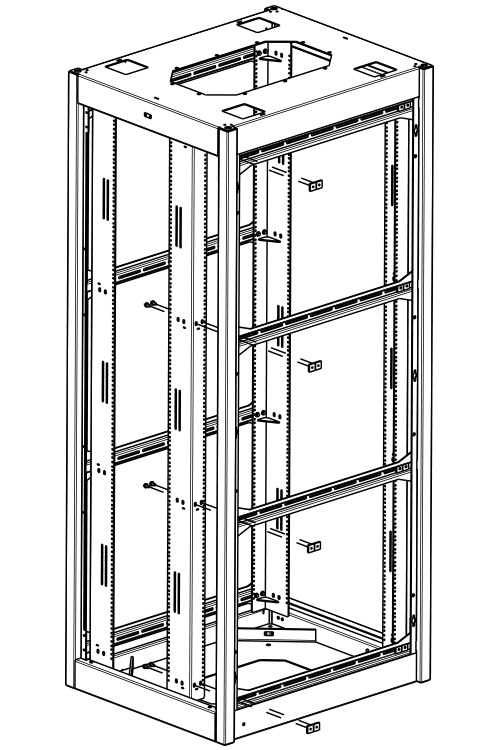

S843036xxxx assembled
S843036 views

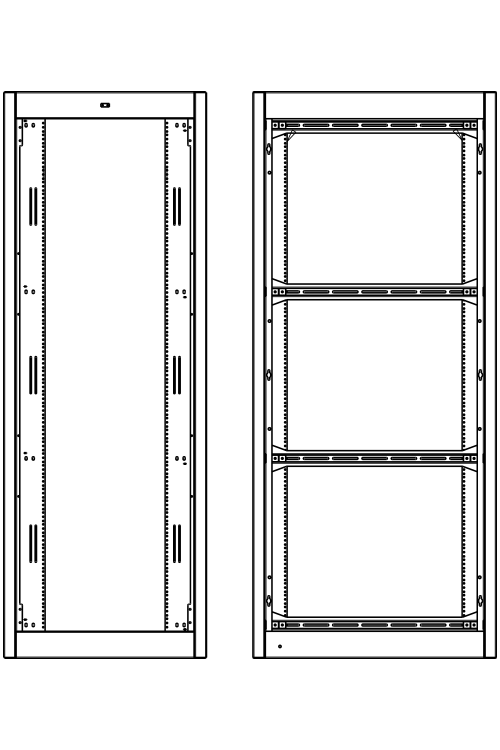

S843036xxxx views

Materials:

  • Frame : 11 gauge steel fully welded chassis
  • Doors : 13 gauge steel Side
  • Panels : 16 gauge steel
  • Mounting Uprights : Zinc-plated 11 gauge steel

Features

  • Securable side panels with removable cross-connect openings. Easy to lift and remove.
  • 3-point, keyed locks on front and rear doors. Available in multiple key-codes.
  • Set of four (4) mounting uprights interchangeable to either 19” or 23” rack-mount orientation with cable management slots for cable ties. See below for mounting pattern options.
  • Quick-release, spring-hinged doors for easy access for setup and maintenance. See below for door options.
  • ¼”-20 grounding points located throughout enclosure.
  • No side cross-bracing for quick and easy side access.
  • Open base design for under-floor cable routing.
  • Multiple fan options available.

Ordering Info

S842330xxxx Seismic Frame / Cabinet Ordering Table
Part Number Height Width Depth Fan Option Door Option Hole Pattern Color
S84303600164 84″ 30″ 36″ none Perforated front & solid rear doors and solid sides EIA Universal Blue Wrinkle
S84303600244 84″ 30″ 36″ none Perforated front & solid rear doors and solid sides EIA Universal Gray
S84303628244 84″ 30″ 36″ 4 AC Fans @ 408 CFM Plexiglass front door / solid rear door, no sides panels EIA Universal Gray
S84303603164 84″ 30″ 36″ none Perforated rear door / perforated front door EIA Universal Blue Wrinkle
S84303603244 84″ 30″ 36″ none Perforated rear door / perforated front door EIA Universal Gray
S84303608244 84″ 30″ 36″ none Plexiglass front door / solid rear door, no sides panels EIA Universal Gray
S84303609144 84″ 30″ 36″ none No Doors (front / back) or sides/top panels EIA Universal Gray
S84303609164 84″ 30″ 36″ none No Doors (front / back) or sides/top panels EIA Universal Blue Wrinkle
S84303609244 84″ 30″ 36″ none No Doors (front / back) or sides/top panels EIA Universal Gray
S84303609264 84″ 30″ 36″ none No Doors (front / back) or sides/top panels EIA Universal Blue Wrinkle
S84303621244 84″ 30″ 36″ 4 AC Fans @ 408 CFM Perforated front & solid rear doors and solid sides EIA Universal Gray
