Equipment Racks: Channel Type

Floor supported channel type equipment racks

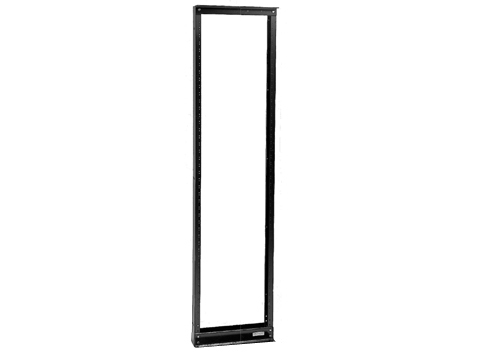

This is the Newton Channel style equipment rack that is found in most communication rooms worldwide. The uprights are “C” shaped with a depth of approximately 3″, They are double side drilled with 12-24 tapped holes. You are able to order it as a bolt together or welded unit. Available in steel or aluminum. The rack is supported by floor and comes with a top angle. The rack has a depth of 15 inches.

Table below shows complete part numbers for a limited selection of channel racks. Newton has several other configurations to fit your application, contact your CSR for other height and mounting options

004010xxxx and 004011xxxx Series

Notes

• Hole are tapped 12-24
• Other colors are available, call your Customer Service Representative for more information.

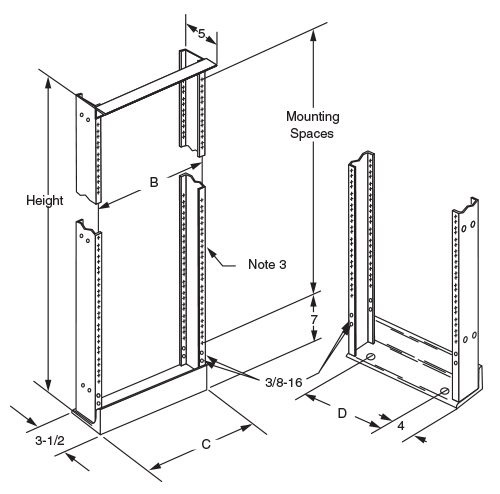

Channel type EQ rack dimensions

Dimensions	19″	23″
A	17-1/2″	21-1/2″
B	18-5/16″	22-5/16″
C	20-15/16″	24-15/16″
D	12-5/16″	16-5/16″
