Newton Auxiliary Framing Products

Reinforced Application

Also Known As

Seismic application, Aux Framing, Channel, Bar, OX bar, Support, Super Structure, flat bar and "C" Channel.

Seismic Application

Reinforced Aux Framing Comparison

Reinforced Aux Framing Comparison. The holes are to add strength and rigidity at junctions with certain hardware kits.

Auxiliary framing is used to support and brace overhead structures in a telecommunication or data room. Aux. framing may also be used to brace in racks and frames to the superstructure. Standard finish is TE Gray, 30. For Optional Colors and Sizes, contact your Customer Service Representative.
Browse accessories for Newton Auxiliary Framing

Reinforced Aux Framing Cross Junction usage example

Reinforced Aux Framing Cross Junction usage example

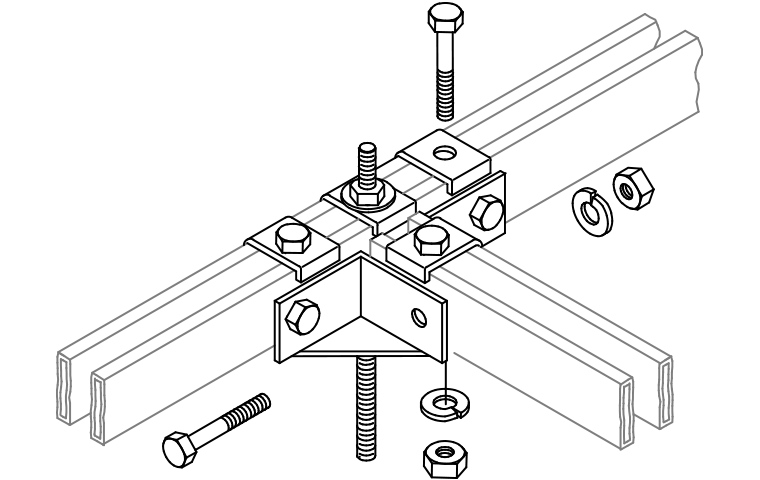

Reinforced Aux Framing Tee Junction usage example

Reinforced Aux Framing Cross Junction usage example

Reinforced Aux Framing In-line Junction usage example

Reinforced Aux Framing Cross Junction usage example

Bar Ordering Table

Parallel Auxiliry Framing Bar Profile

Seismic Bar Profile -- 2″ x 3/8″

Reinforced Auxiliary Framing Bar Ordering Table
Newton Part # Length
2109840130 2´
2109840230 4´
2109840330 6´
2109840430 8´
2109840530 10´

Channel Ordering Table

Parallel Auxiliry Framing Channel Profile

Seismic Channel Profile -- 2″ x 9/16″ x 3/16″

Reinforced Auxiliary Framing Channel Ordering Table
Newton Part # Length
2109860130 2´
2109860230 4´
2109860330 6´
2109860430 8´
2109860530 10´
2109860630 12´

Auxiliary Framing Application Guide

Auxillary Framing Application Guide
