Newton Cabinets, Frames and Enclosures: NCK084

Newton Conversion Kit -- turns a Newton NDR or NFR into a 4-post frame

The conversion kit is the perfect accessory to the Newton product series of 84″ Newton Data Racks “NDR” (EIA 310-D compliant) and Newton Formed Racks “NFR” (EIA 310-D compliant) steel racks to create a 4-Post Frame. It offers a very cost effective solution to convert an existing two post rack into a higher strength, deeper four post frame option. These lightweight aluminum or steel kits are shipped unassembled in a compact 6″ x 6″ x 86″ secure package, minimizing storage space and shipping costs.

Photos

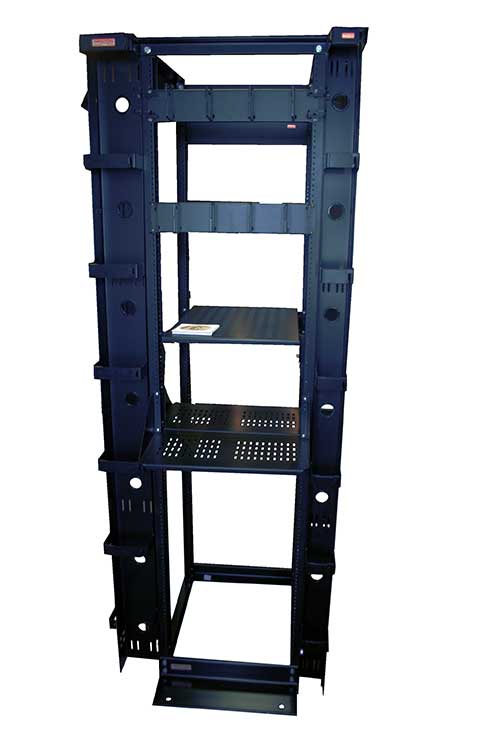

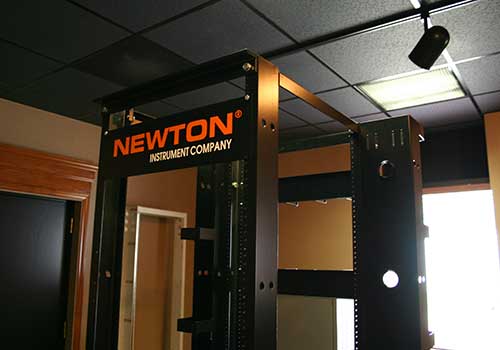

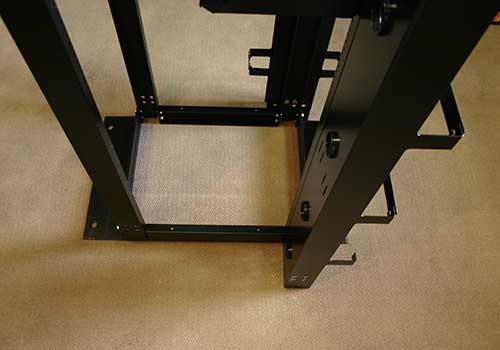

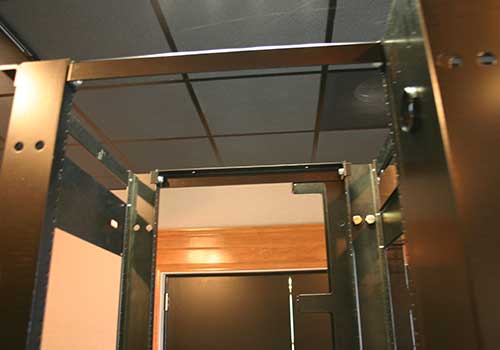

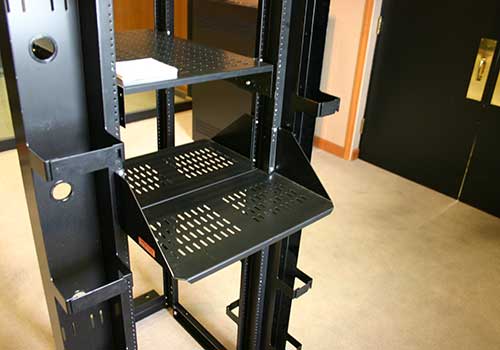

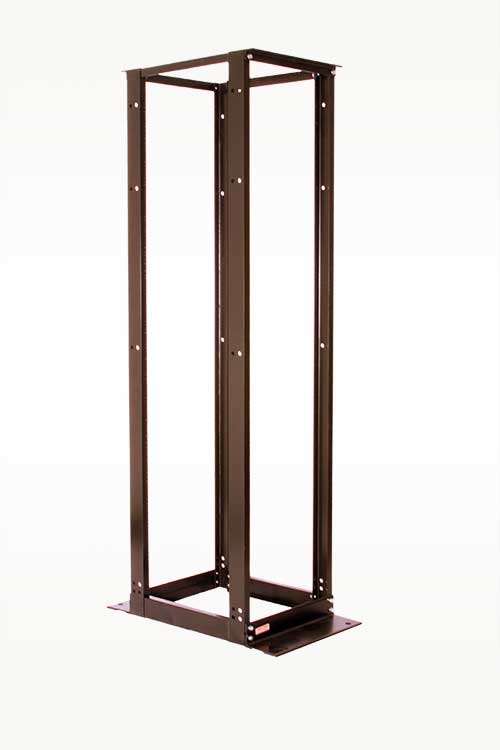

Newton Conversion Kit Image Newton Conversion Kit Image Newton Conversion Kit Image Newton Conversion Kit Image Newton Conversion Kit Image Newton Conversion Kit Image Newton Conversion Kit Image

Drawings

NCK Views

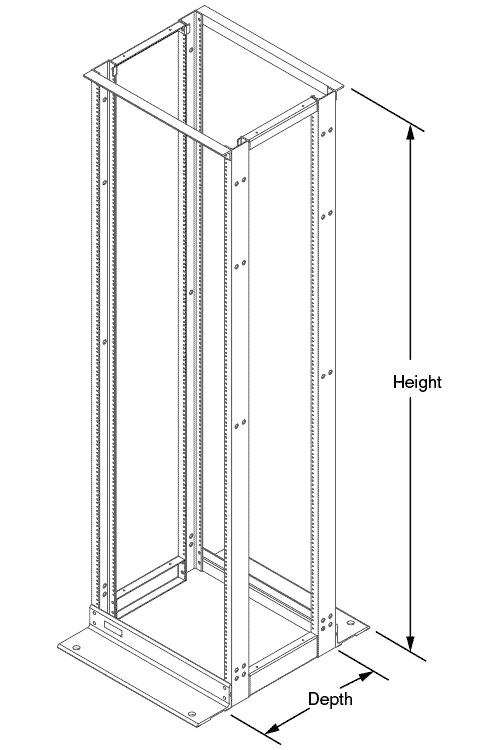

NCK084xxxxxx Iso
NCK ISO

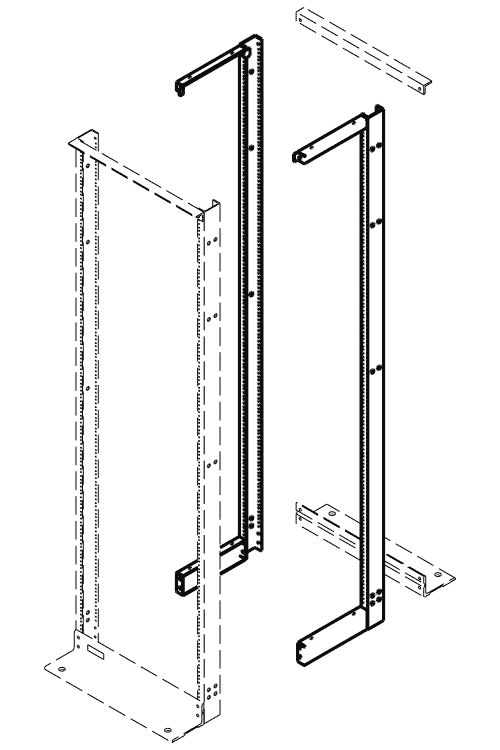

NCK084xxxxxx Exploded ISO

Features

  • Available in black, gray and unfinished aluminum
  • EIA Universal mounting hole pattern, for Aluminum version.
  • EIA WIde and EIA Universal mounting hole pattern, for Steel version.
  • Open architecture, allows easy access to equipment.
  • Available in three depths, 18″, 24″ and 30″.
  • Final, finished four post configuration has a minimum 1500 lb. static load capacity.
  • Versatile for either 19″ or 23″ rack configurations.
  • Can be used in conjunction with Newton’s NSCM and NVCM cable managers

Note:

You must purchase NDR & NFR racks separately

Ordering Info

NSF813024xxx47 Ordering Table
Part Number Depth Hole Pattern Material Color
NCK084180030 18″ conversion EIA Universal aluminum Gray
NCK084185030 18″ conversion EIA WIde steel Gray
NCK084185130 18″ conversion EIA Universal steel Gray
NCK084240030 24″ conversion EIA Universal aluminum Gray
NCK084245030 24″ conversion EIA WIde steel Gray
NCK084245130 24″ conversion EIA Universal steel Gray
NCK084300030 30″ conversion EIA Universal aluminum Gray
NCK084305030 30″ conversion EIA WIde steel Gray
NCK084305130 30″ conversion EIA Universal steel Gray
