Equipment Racks: Network Bay Kit
222545xxxx
This series of Network Bays includes reconfigured guard rail kits to help protect the deeper equipment placed inside of the Network bay. The configuration of the 222545xxxx Series is with a standard upright (no return flanges), giving a little more room for inter bay wire harnesses. The base cover is a nominal 4″ high with the 1st mounting hole at 5″ from bottom of frame.

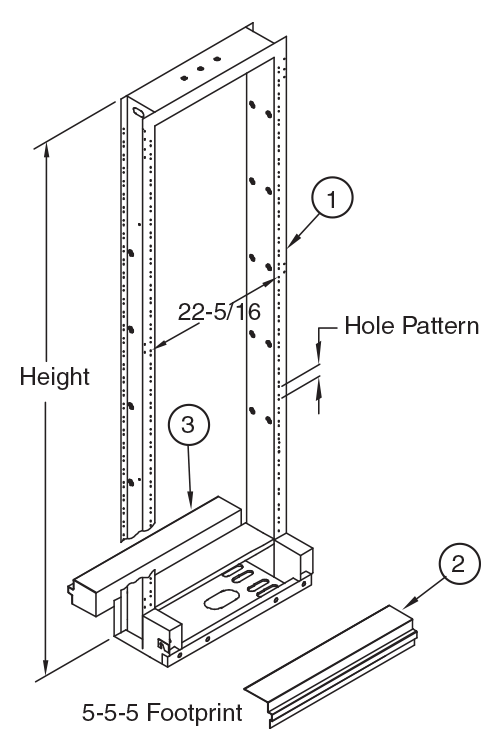

555 Network Bay
555 Network Bay

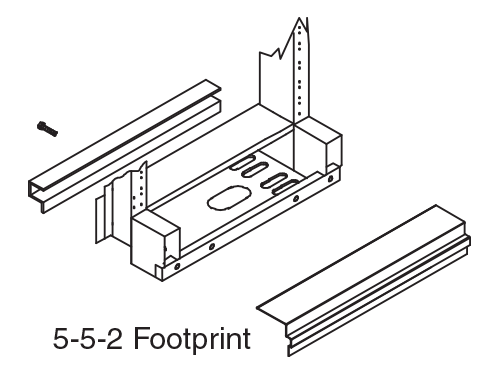

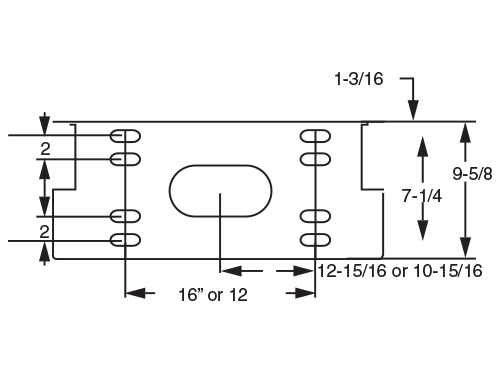

Network Bay FootPrint

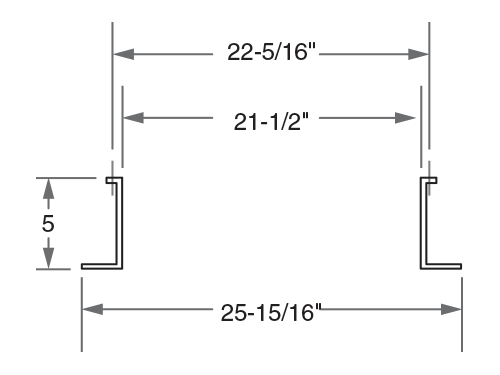

Network Bay Upright profile

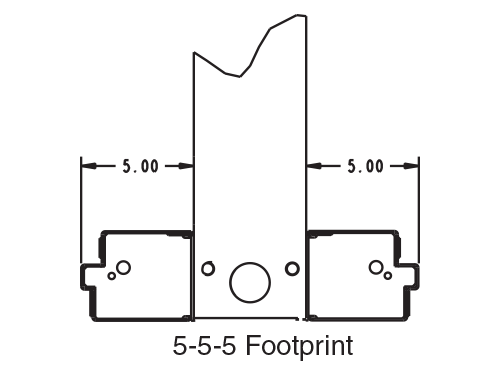

555 Network Bay profile

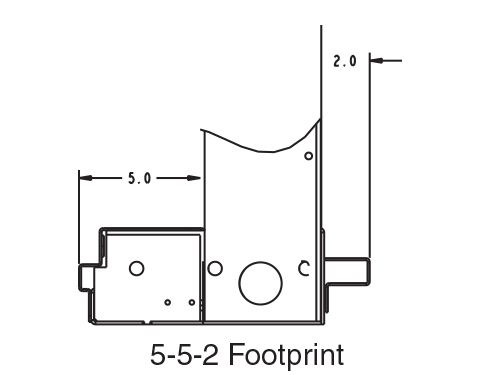

552 Network Bay profile
Notes
- XX= finish code; standard finish, 64. Others available upon request.
- Front and rear of frame tapped for 12-24 screws.
- Cable tie mounts are included
- Order cable tie bar kit (0041190110) separately.
- Order accessories as required.
Table below shows complete part numbers for a limited selection of Network Bays . Newton has several Network Bay configurations to fit your application, contact your Customer Service Representative for other height and mounting options
| Part Number | A | B | C | D | E | Rack | Duct | Hole Pattern | Mounting Spaces | Height |
|---|---|---|---|---|---|---|---|---|---|---|
| 2225453164 | 21-1/2″ | 22-5/16″ | 25-15/16″ | 16″ | 12-15/16″ | 23″ (5-5-5) Network Bay | closed | WECO | 44 | 7′-0″ |
| 2225450130 | 21-1/2″ | 22-5/16″ | 25-15/16″ | 16″ | 12-15/16″ | 23″ (5-5-2) Network Bay | closed | EIA WIde | 44 | 7′-0″ |
| 2225451164 | 21-1/2″ | 22-5/16″ | 25-15/16″ | 16″ | 12-15/16″ | 23″ (5-5-5) Network Bay | closed | EIA WIde | 44 | 7′-0″ |
