Equipment Racks: Channel Type
Floor supported channel type equipment racks
This is the Newton Channel style equipment rack that is found in most communication rooms worldwide. The uprights are “C” shaped with a depth of approximately 3″, They are double side drilled with 12-24 tapped holes. You are able to order it as a bolt together or welded unit. Available in steel or aluminum. The rack is supported by floor and comes with a top angle. The rack has a depth of 15 inches.
004010xxxx and 004011xxxx Series
| Dimensions | 19″ | 23″ |
|---|---|---|
| A | 17-1/2″ | 21-1/2″ |
| B | 18-5/16″ | 22-5/16″ |
| C | 20-15/16″ | 24-15/16″ |
| D | 16″ | 20″ |
Notes
- Hole are tapped 12-24
- Other colors are available, call your Customer Service Representative for more information.

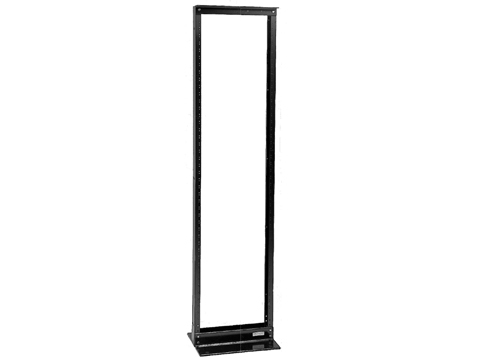

Channel Type Equipment Rack
Channel type upright profile
Channel Type Equipment Rack
Table below shows complete part numbers for a limited selection of channel racks. Newton has several other configurations to fit your application, contact your CSR for other height and mounting options
| Part Number | Width | Height | Hole pattern | Mtg Spaces | Assembly | Material | Finish |
|---|---|---|---|---|---|---|---|
| 0040100130 | 19″ | 7′-0″ | EIA WIde | 42 | welded | Steel | Gray 30 |
| 0040100730 | 19″ | 7′-0″ | EIA WIde | 42 | bolted | Steel | Gray 30 |
| 0040101330 | 19″ | 7′-0″ | EIA WIde | 42 | bolted | Aluminum | Gray 30 |
| 0040110130 | 23″ | 7′-0″ | EIA WIde | 42 | welded | Steel | Gray 30 |
| 0040110730 | 23″ | 7′-0″ | EIA WIde | 42 | bolted | Steel | Gray 30 |
| 0040111330 | 23″ | 7′-0″ | EIA WIde | 42 | bolted | Aluminum | Gray 30 |
| 0040111323 | 23″ | 7′-0″ | EIA WIde | 42 | bolted | Aluminum | unpainted |
| 2115540130 | 19″ EIA compatible | 7′-0″ | EIA WIde | 42 | bolted | Aluminum | gray |
| 2115540730 | 23″ EIA compatible | 7′-0″ | EIA Universal | 42 | bolted | Aluminum | gray |
| 0040111323 | 23″ EIA compatible | 7′-0″ | EIA WIde | 42 | bolted | Aluminum | gray |
